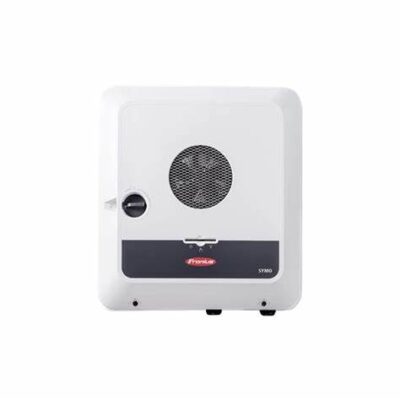

Fronius Symo Gen24 10.0 Plus

Number of MPP trackers2
Max. PV input power

10300 W

Max. input current (I_{dc max})

25 / 12,5 A

Max. short circuit current, module array*

40,0 / 20,0 A

DC input voltage range (U_{dc min} – U_{dc max})

80-1000 V

Feed-in start voltage (U_{dc start})

80 V

Nominal input voltage (U_dc,r)

610 V

MPP voltage range (U_{mpp min} – U_{mpp max})

278-800 VUsable MPP voltage range80-800Number of DC connections2/1

Max. PV generator power (P_{dc max})

15 kWpeak

OUTPUT DATA

AC nominal output (P_ac,r)

10 kW

Max. output power (P_{ac max})

10 kVAMax. grid power demand10.000 VAMax. AC output current16,4 A

Grid connection (U_ac,r)

3~NPE 400/230, 3~NPE 380/220 V

AC voltage range (U_min – U_max)

154-280 V

Frequency (f_r)

50 / 60 Hz

Frequency range (f_min – f_max)

45-66 HzTotal harmonic distortion<3% @Pnom (230/400VAC 50Hz)

Power factor (cos φ_ac,r)

0,7-1 ind,/cap,Back-up power3~NPE 400 V / 230 V

Nom. AC-Ausgangsstrom (380V_AC)

15,2 A

Nom. AC-Ausgangsstrom (400V_AC)

14,5 A

GENERAL DATA

Length

595 mm

Width

529 mm

Height

595 mm

Depth

180 mmWeight23,38 kgWeight incl. packaging28,5 kgDegree of protectionIP66Protection class1

Overvoltage category (DC / AC)¹⁾

2/3Inverter designTransformerlessCoolingRegulated air coolingInstallationIndoor and outdoor installationAmbient temperature range-25°C – +60°CPermitted humidity0 – 100%

Max. altitude ²⁾

3000m / 4000mDC PV connection technology3x DC+ and 3x DC- push-in spring terminals 2.5 – 10 mm²

DC battery connection technology1x BATT+ and 1x BATT- push-in spring terminals 2.5 – 10 mm²AC connection technology5 pole AC push-in spring terminals 1.5 – 10 mm²,

3 pole backup power push-in spring terminals 1.5mm² – 10mm², 5x PE-screw terminals 2.5 – 16 mm²

Certificates and compliance with standardsIEC 62109, IEC 62116, IEC 61727, IEC 62909, VDE 0126,
VDE AR-N4105, AS/NZS 4777.2, EN 50549, CEI 0-21, G 98, R25 ⁷⁾Back-up power functionsPV Point, full backup ⁴⁾

Compatible batteries ⁶⁾

BYD Battery-Box Premium HVS/HVM⁵⁾& LG RESU FLEXSound emissions47 dB(A)Interference emission classB

EFFICIENCY

Max. efficiency (PV – grid)98,2 %European efficiency (ηEU)97,9

η at 25% P_ac,r³⁾

98MPP adaptation efficiency>99,9%

PROTECTION DEVICES

DC insulation measurementJa

DC insulation measurementYes

Overload behaviourOperating point shift.

Power limitationDC disconnectorYes

DC Reverse polarity protectionYes

INTERFACES

WLAN / 2x Ethernet LANFronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)6x digital in/out + 6x digital inInterface to ripple control receiver, energy managementEmergency stop (WSD)YesDatalogger and web serverIncluded2x RS485Modbus RTU SunSpec (third-party supplier) / Fronius Smart Meter, battery, Fronius Ohmpilot

OUTPUT DATA PV POINT

Max continuous output power3000 VA

Nom. output current _{(Iac max)}

13 AGrid connection1 ~ NPE 220 V / 230 VFrequency53 Hz / 63 HzMax. switchover time PV-Point20 sMax. switchover time Full Backup35 sFrequency in backup power mode53 Hz

BATTERY CONNECTION

Number of DC connections1

Max. input current (I_{dc max.})

22 AMax. input / output power (Depending on the connected battery)10,3 kWMax. AC charging power (Depending on the connected battery)10,000 WMin.

DC input voltage160 VMax. DC input voltage531 V
